Archiv der Kategorie: Allgemein

Neues

ExpressLRS gibt’s 3.0

  • mit WIFI-Betaflight-Config-Link.

DJI FPV Goggles gehackt

  • fpvwtf hat das BF-OSD auf die DJI-Hardware gebracht.

Ich hab eine neue Fritzbox

  • VPN geht wieder.
  • Fritz!fon-DECT-Telefon ist bestellt.
  • Die Box ist viel schneller als der Schrott von Vodafone!

Mikrowellen-Reparatur

Ich lebe noch!

Zu schade zum Wegschmeißen. Medion MD11711 4in1. Und ich konnte mich nicht für eine neue entscheiden…

Total verschmorter Stecker am Trafo. Ich hab die Kabel jetzt direkt angelötet. Wenn das zu heiß läuft, lötet sich’s halt ab… Kabelbinder fixieren die Kabel, damit sie nirgends dran kommen.

Mini-Retro-Hifi

Wartung und Reparatur der Onkyo-Komponenten, frisch von privat eingekauft aus Erstbesitz und optisch super. Nur leider haben die Teile fast alle einen Service dringend nötig:

  • Verstärker A-911: Poti knistert und ungleich rechts/links, Quellenwahlrad springt.
  • CD C-711: Springt/stottert/setzt aus.

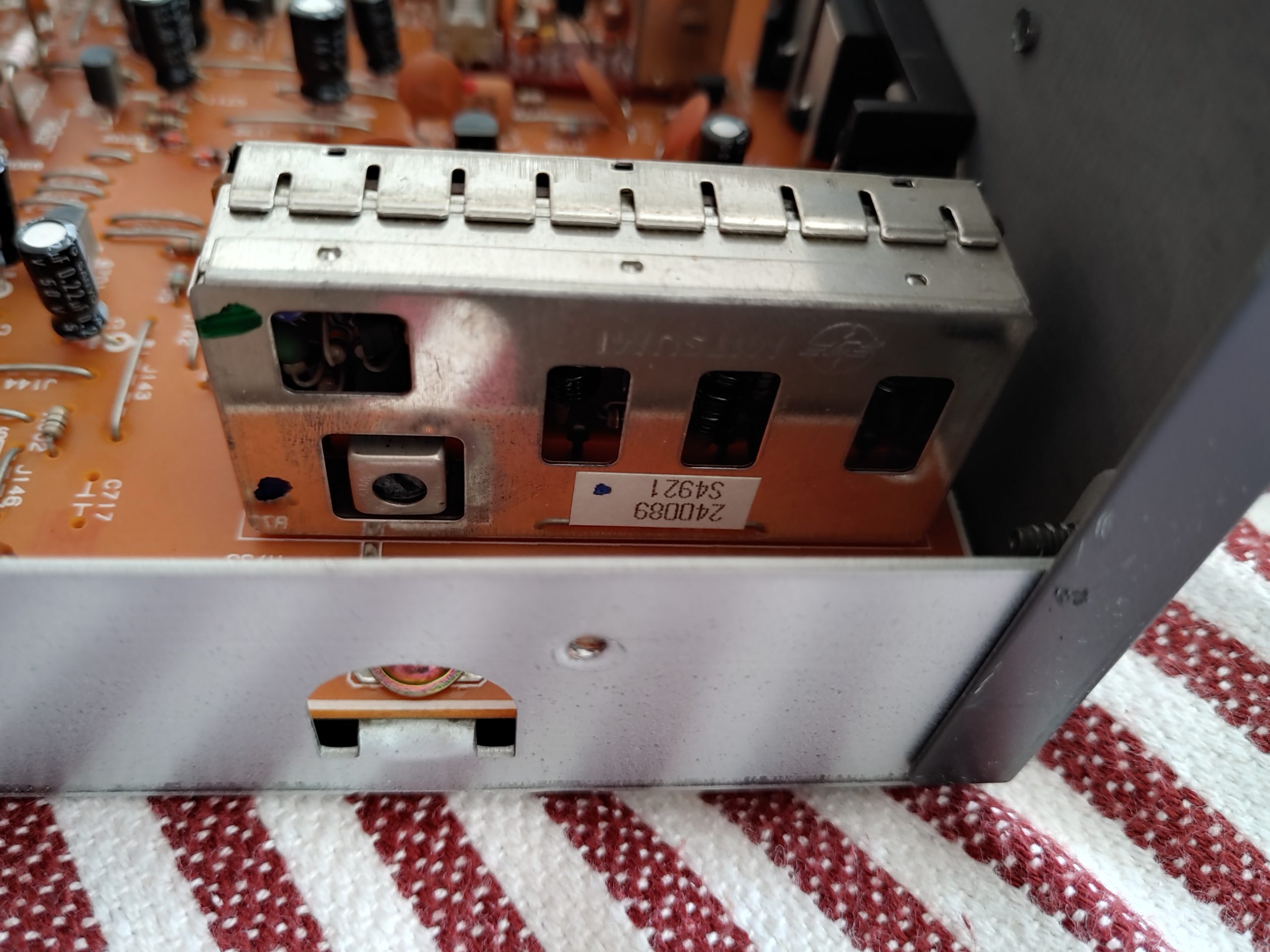

  • Tuner T-411: Trifft nicht genau die Frequenz.
  • Kassette K-611: Tonköpfe kommen nicht in die Abspielposition, ein Capstan klemmt.

Kassettendeck-Reparatur #1

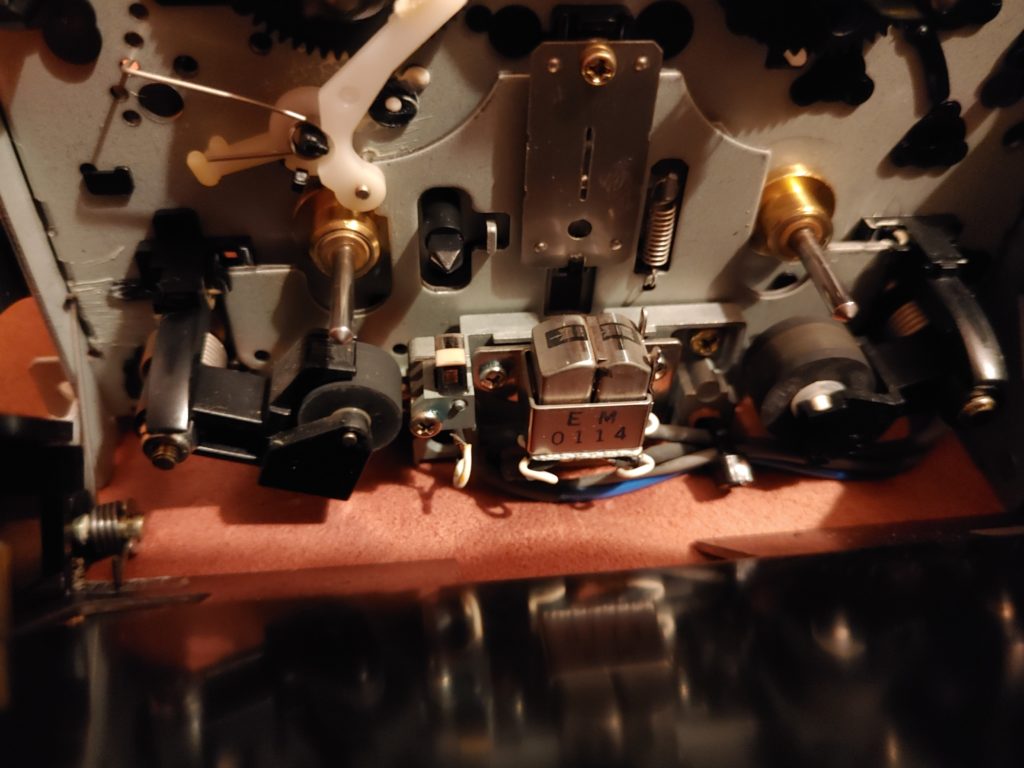

Das Deck braucht neue Riemen. Ich habe auch das Capstan-Spiel eingestellt. Gestern kochte ich den Steuerriemen, dann lief das Deck. Heute leider nicht mehr. Also neue Riemen bestellt…

Neuer Copter: FLOSS210

Fix HGLRC F722 Baro on BF 4.2.11 or 4.3:

set baro_bustype = SPI
set baro_spi_device = 1
set baro_i2c_device = 0
save
